EC2 Deployment with SSL for linqra.com

1. Connect to Your EC2 Server

Use SSH to connect to your EC2 instance:

ssh -i "yourfile.pem" ubuntu@ec2-XX-XXX-XX-XXX.us-west-2.compute.amazonaws.com

You should see a prompt like:

2. Generate SSL Key and CSR

Create the private key and certificate signing request (CSR):

sudo openssl req -new -newkey rsa:2048 -nodes \
    -keyout linqra.key \
    -out linqra.csr \
    -subj "/C=US/ST=Texas/L=Houston/O=Linqra/OU=Production/CN=linqra.com"

Check the generated files:

ls -ltr
# Output example:
# -rw------- 1 root root 1704 Apr  8 17:02 linqra.key

3. Obtain SSL Certificates

Go to your SSL provider (e.g., GoDaddy, Namecheap, or any hosting site that sells SSL certificates).
Copy the contents of linqra.csr and paste it into the provider’s CSR box.
Submit and wait for approval.
Download the resulting ZIP file (Server type: Other), e.g. linqra.com.zip.

You will receive:

f8d48b14580110e.crt
f8d48b14580110e.pem (identical to the .crt)
gd_bundle-g2.crt

4. Upload Certificates to the Server

Use FileZilla, IntelliJ, or another SFTP tool to upload the two .crt files to /tmp/ on your EC2 server. Then move them to the target directory:

sudo mv /tmp/*.crt /etc/pki/tls/certs/2025/
ls -ltr /etc/pki/tls/certs/2025/

Note: The .pem and .crt files from your provider are often identical.

5. Generate the Certificate Chain

Switch to root and concatenate the certificate and bundle to create the chained certificate:

sudo su
cat f8d48b14580110e.crt gd_bundle-g2.crt >> linqrachained2025.crt
exit

Check the resulting files:

ls -ltr
# -rw------- 1 root   root   1704 Apr  8 17:03 linqra.key
# -rw-r--r-- 1 root   root   1009 Apr  8 17:03 linqra.csr
# -rw-rw-r-- 1 ubuntu ubuntu 2329 Apr  8 17:21 f8d48b14580110e.crt
# -rw-rw-r-- 1 ubuntu ubuntu 3095 Apr  8 17:21 gd_bundle-g2.crt
# -rw-r--r-- 1 root   root   5424 Apr  8 17:24 linqrachained2025.crt

You now have all the necessary SSL files (linqra.key, linqrachained2025.crt) to configure your web server for HTTPS on linqra.com.

6. Set Up AWS EC2 Folders and Prepare for Deployment

Create the necessary directories for your application and logs:

sudo mkdir -p /var/www/linqra
sudo mkdir -p /var/www/linqra/logs

7. Manage Nginx

You may need these commands to manage the Nginx service:

sudo systemctl status nginx
sudo systemctl start nginx
sudo systemctl stop nginx
sudo systemctl restart nginx

8. Configure Nginx for SSL and React Frontend

Edit the default Nginx site configuration:

sudo vi /etc/nginx/sites-available/default

Example configuration:

server {
        server_name     linqra.com www.linqra.com;
        listen          80;
        listen          [::]:80;
        return  301     https://linqra.com$request_uri;
}

server {
        server_name     www.linqra.com;
        listen  443 ssl;
        listen  [::]:443 ssl;
        ssl_certificate         /etc/pki/tls/certs/2025/linqrachained2025.crt;
        ssl_certificate_key     /etc/pki/tls/certs/2025/linqra.key;
        ssl_protocols TLSv1.2 TLSv1.1;
        return 301      https://linqra.com$request_uri;
}

server {
        listen       443    ssl;
        ssl_certificate         /etc/pki/tls/certs/2025/linqrachained2025.crt;
        ssl_certificate_key     /etc/pki/tls/certs/2025/linqra.key;
        ssl_protocols TLSv1.2 TLSv1.1;
        server_name  linqra.com;


        # Increase buffer sizes
        proxy_buffer_size 128k;
        proxy_buffers 4 256k;
        proxy_busy_buffers_size 256k;
        proxy_max_temp_file_size 0;
        proxy_http_version 1.1;

        # Increase header buffer size
        large_client_header_buffers 4 16k;
        client_header_buffer_size 4k;
        client_max_body_size 50M;

        # Logs
        access_log /var/www/linqra/logs/access.log;
        error_log /var/www/linqra/logs/error.log;


        location /keycloak/ {
                proxy_pass http://localhost:8281;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto https;
                proxy_set_header X-Forwarded-Host $host;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;

                # Add this rewrite rule to handle the redirect
                proxy_redirect http://localhost:8281 https://linqra.com/keycloak;

                proxy_http_version 1.1;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "upgrade";

                proxy_redirect http:// https://;
        }

        # Handle realms paths
        location /realms/ {
                rewrite ^/realms/(.*) /keycloak/realms/$1 last;
        }

        # Handle resources paths
        location /resources/ {
                rewrite ^/resources/(.*) /keycloak/resources/$1 last;
        }

        # Handle admin paths
        location /admin/ {
                rewrite ^/admin/(.*) /keycloak/admin/$1 last;
        }


        location /eureka/ {
                proxy_pass https://localhost:8761/eureka/;
                proxy_ssl_verify off;  # Only if using self-signed certs
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto https;
                proxy_set_header X-Forwarded-Host $host;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
        }

        location /api/auth/sso/callback {
                proxy_pass https://localhost:7777/api/auth/sso/callback;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_ssl_verify off;  # Since you're using self-signed certs
        }

        location /api/ {
                proxy_pass https://localhost:7777/api/;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
        }

        location /metrics/ {
                proxy_pass https://localhost:7777/metrics/;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
        }

        location /ws-linqra {
                proxy_pass https://localhost:7777/ws-linqra;
                proxy_http_version 1.1;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "upgrade";
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_ssl_verify off;  # Only if using self-signed certs
        }

        location /callback {
                root /var/www/linqra/edge-service;
                try_files $uri $uri/ /index.html;

                # Add necessary headers
                add_header X-Frame-Options "SAMEORIGIN";
                add_header X-XSS-Protection "1; mode=block";
                add_header X-Content-Type-Options "nosniff";

                # Ensure proper proxy headers
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
        }


        location /r/ {
                proxy_pass https://localhost:7777/r/;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_ssl_verify off;  # Only if using self-signed certs
        }


        location /linq {
                proxy_pass https://localhost:7777/linq;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_set_header X-Api-Key $http_x_api_key;
                proxy_set_header X-Api-Key-Name $http_x_api_key_name;
                proxy_ssl_verify off;
        }


        location / {
                root /var/www/linqra/edge-service;
                try_files $uri $uri/ /index.html;

                # Basic security headers
                add_header X-Frame-Options "SAMEORIGIN";
                add_header X-XSS-Protection "1; mode=block";
                add_header X-Content-Type-Options "nosniff";
        }

        # Static assets
        location /static/ {
                root /var/www/html/linqra/edge-service;
                expires 1y;
                add_header Cache-Control "public, no-transform";
        }

        # Deny access to sensitive files
        location ~ /\. {
                deny all;
        }
}

9. Enable the Nginx Site

Symlink the sites-available file to the sites-enabled folder:

sudo ln -s /etc/nginx/sites-available/default /etc/nginx/sites-enabled/default

10. Set Permissions for Deployment

Navigate to your deployment directory and set the correct permissions:

cd /var/www/html/linqra
sudo chown -R www-data:www-data edge-service
sudo find edge-service -type d -exec chmod 755 {} \;
sudo find edge-service -type f -exec chmod 644 {} \;
ls -la edge-service

Note:

Always edit the sites-available file for Nginx configuration.
Adjust the paths and domain names as needed for your environment.

11. Configure GitHub Actions Repository Secrets

To enable automated deployment and secure access, add the following secrets to your GitHub repository:

1. SSH Key for EC2

Generate or use your existing SSH private key.
Example (do not use this key, just for illustration):

-----BEGIN RSA PRIVATE KEY-----
AIIEogIBAAKCAQEAnIEpVE0yKTyvd63vXoFlICdqOlMNNIjCogHbE6Np/fgmDC8G
... (key content) ...
-----END RSA PRIVATE KEY-----

Add this as a new repository secret named:

EC2_SSH_KEY_PROD

2. EC2 Host and Deployment Info

Add the following repository secrets:

Secret Name	Example Value
`HOST_DNS_PROD`	ec2-XX-XXX-XX-XXX.us-west-2.compute.amazonaws.com
`USERNAME_PROD`	ubuntu
`TARGET_DIR_PROD`	/var/www/linqra

3. AWS Credentials

Secret Name	Example Value
`AWS_KEY`	BKIA2YCP4BIK8KAWUILY
`AWS_SEC`	0UraNVReMtYbiqOB0ZGKiUTFzHFTFg9AZayniFda

4. Web Application Secrets

Copy these from your web environment files and add as repository secrets:

Secret Name	Example Value
`JWT_SECRET`	4a98d4c7b6e5f2a1d8c9b4a7e6f3d2c1b8a7e6f3d2c1b8a7e6f3d2c1b8a7e6f3d2c1b8a7e6f3d2c1b8a7e6f3d2c1b8a7e6f3d2c2
`NODE_ENV`	production
`VITE_WS_URL`	wss://linqra.com/ws-linqra
`VITE_MONGODB_URI`	mongodb://root:mongopw@localhost:27017
`VITE_MONGODB_DB_NAME`	Linqra
`VITE_API_GATEWAY_URL`	https://linqra.com
`REACT_APP_KEYCLOAK_URL`	https://linqra.com/keycloak
`REACT_APP_KEYCLOAK_REALM`	Linqra
`REACT_APP_KEYCLOAK_CLIENT_ID`	linqra-gateway-client
`VITE_API_KEY`	lm_8e2093b6b9634dca9460f8d0cdfe38cb
`VITE_API_KEY_NAME`	MyApiKey

How to add a secret:

Go to your GitHub repository.
Click on Settings > Secrets and variables > Actions.
Click New repository secret.
Enter the name and value, then click Add secret.

Tip:
Never commit your private keys or secrets to the repository. Always use GitHub Actions secrets for sensitive data.

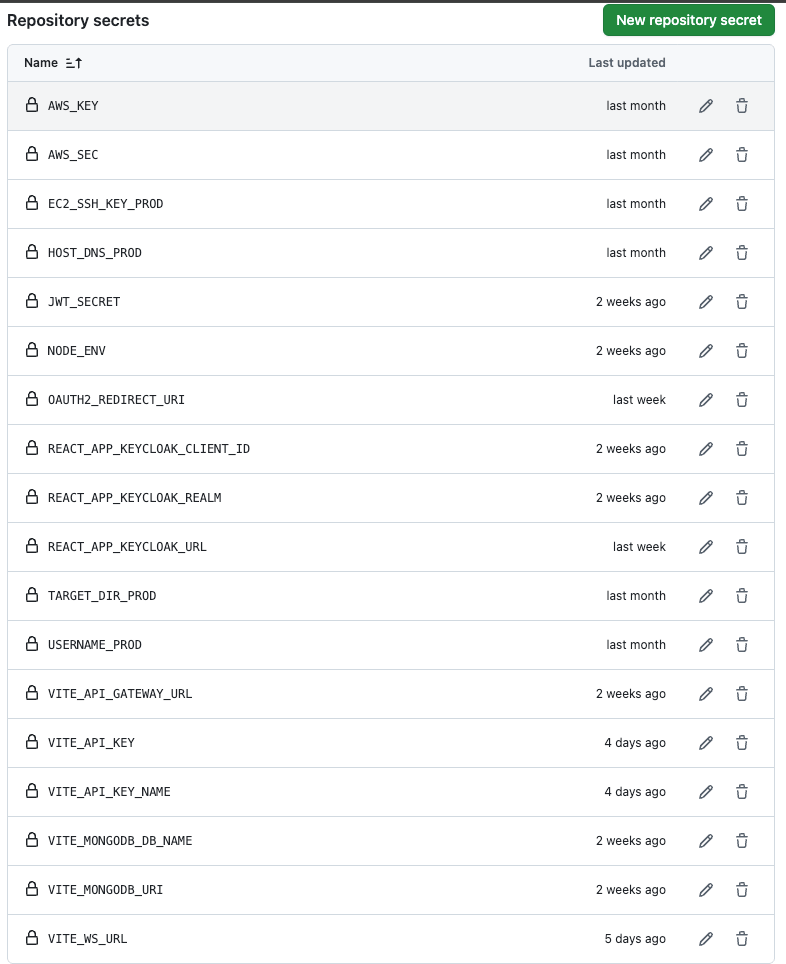

GitHub Actions Repository Secrets Example

With the above GitHub secrets configured, your ci.yml workflow will automatically deploy all necessary files to your EC2 server whenever new code is merged into the master branch. This ensures a secure and automated deployment process. We’ll cover the Dockerization steps for your application in the next section.

12. Final GitHub Actions CI/CD Pipeline (`ci.yml`)

Below is the complete ci.yml workflow file used for automated deployment.
Once code is merged into the master branch, this pipeline will automatically build and deploy your application to the EC2 server—no additional manual steps are required.

name: Linqra CI
on:
  push:
    branches: [ "master" ]
  pull_request:
    branches: [ "master" ]

permissions:
  contents: write

jobs:
  java-app:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      # Upload API Gateway source files
      - name: Upload API Gateway source
        uses: actions/upload-artifact@v4
        with:
          name: api-gateway-source
          path: |
            api-gateway/**
            !api-gateway/target/**
            !api-gateway/target/

      # Upload Discovery Server source files
      - name: Upload Discovery Server source
        uses: actions/upload-artifact@v4
        with:
          name: discovery-server-source
          path: |
            discovery-server/**
            !discovery-server/target/**
            !discovery-server/target/

      # Upload docker-compose.yml
      - name: Upload docker-compose file
        uses: actions/upload-artifact@v4
        with:
          name: docker-compose
          path: docker-compose-ec2.yml

      # Upload root pom.xml
      - name: Upload root pom file
        uses: actions/upload-artifact@v4
        with:
          name: root-pom
          path: pom.xml

      # Debug and upload .kube directory with hidden files
      - name: Debug .kube directory
        run: |
          echo "Checking .kube directory contents:"
          ls -la .kube/

      - name: Copy .kube to temporary directory
        run: |
          cp -r .kube kube-config

      - name: Upload kube directory
        uses: actions/upload-artifact@v4
        with:
          name: kube-config
          path: kube-config/**

      # Add this new step to upload keys directory
      - name: Upload keys directory
        uses: actions/upload-artifact@v4
        with:
          name: keys-config
          path: keys/
          if-no-files-found: error

  # we build react here in the GitHub actions
  react-build:
    needs: java-app
    runs-on: ubuntu-latest
    defaults:
      run:
        working-directory: ./edge-service
    steps:
      - uses: actions/checkout@v4

      - name: Create .env file
        run: |
          cat <<EOF > .env
          VITE_MONGODB_URI=${{ secrets.VITE_MONGODB_URI }}
          VITE_MONGODB_DB_NAME=${{ secrets.VITE_MONGODB_DB_NAME }}
          NODE_ENV=production
          JWT_SECRET=${{ secrets.JWT_SECRET }}
          VITE_WS_URL=${{ secrets.VITE_WS_URL }}
          VITE_API_GATEWAY_URL=${{ secrets.VITE_API_GATEWAY_URL }}
          REACT_APP_KEYCLOAK_URL=${{ secrets.REACT_APP_KEYCLOAK_URL }}
          REACT_APP_KEYCLOAK_REALM=${{ secrets.REACT_APP_KEYCLOAK_REALM }}
          REACT_APP_KEYCLOAK_CLIENT_ID=${{ secrets.REACT_APP_KEYCLOAK_CLIENT_ID }}
          VITE_API_KEY=${{ secrets.VITE_API_KEY }}
          VITE_API_KEY_NAME=${{ secrets.VITE_API_KEY_NAME }}
          EOF
        working-directory: ./edge-service

      - name: Set up Node.js
        uses: actions/setup-node@v4
        with:
          node-version: '21.5.0'
          cache: 'npm'
          cache-dependency-path: './edge-service/package-lock.json'

      - name: Upgrade npm
        run: npm install -g npm@10.8.1

      - name: Remove package-lock.json
        run: rm -f package-lock.json

      - name: Install dependencies
        run: npm install --legacy-peer-deps
        continue-on-error: true

      - name: Build React app
        run: npm run build
        env:
          CI: false

      - name: Run tests
        run: npm test
        env:
          CI: false

      # Upload React build
      - name: Upload React build
        uses: actions/upload-artifact@v4
        with:
          name: react-build
          path: edge-service/dist

  deploy:
    needs: [java-app, react-build]
    runs-on: ubuntu-latest
    if: github.ref == 'refs/heads/master'

    steps:
      - name: Download all artifacts
        uses: actions/download-artifact@v4
        with:
          path: artifacts
      - name: Install SSH key
        uses: webfactory/ssh-agent@v0.9.0
        with:
          ssh-private-key: ${{ secrets.EC2_SSH_KEY_PROD }}
      - name: Deploy to EC2
        env:
          EC2_HOST: ${{ secrets.HOST_DNS_PROD }}
          EC2_USERNAME: ${{ secrets.USERNAME_PROD }}
          TARGET_DIR: ${{ secrets.TARGET_DIR_PROD }}
        run: |
          # Disable strict host key checking
          mkdir -p ~/.ssh
          echo "StrictHostKeyChecking no" >> ~/.ssh/config

          # Rsync main directories (only changed/new files, with sudo on remote)
          rsync -avz --delete --rsync-path="sudo rsync" artifacts/api-gateway-source/ $EC2_USERNAME@$EC2_HOST:/var/www/linqra/api-gateway/
          rsync -avz --delete --rsync-path="sudo rsync" artifacts/discovery-server-source/ $EC2_USERNAME@$EC2_HOST:/var/www/linqra/discovery-server/
          rsync -avz --delete --rsync-path="sudo rsync" artifacts/react-build/ $EC2_USERNAME@$EC2_HOST:/var/www/linqra/edge-service/

          # Use scp for sensitive or always-fresh files
          scp -v artifacts/docker-compose/docker-compose-ec2.yml $EC2_USERNAME@$EC2_HOST:/var/www/linqra/docker-compose.yml
          scp -v artifacts/root-pom/pom.xml $EC2_USERNAME@$EC2_HOST:/var/www/linqra/pom.xml

          # .kube and keys (if needed, use scp or rsync as appropriate)
          if [ -d "artifacts/kube-config" ]; then
            rsync -avz --delete \
              --exclude 'mongodb/data1/' \
              --exclude 'mongodb/data2/' \
              --exclude 'mongodb/data3/' \
              --exclude 'postgres/data/' \
              --exclude 'pgadmin/data/' \
              --rsync-path="sudo rsync" artifacts/kube-config/ $EC2_USERNAME@$EC2_HOST:/var/www/linqra/.kube/
          fi
          if [ -d "artifacts/keys-config" ]; then
            rsync -avz --delete --rsync-path="sudo rsync" artifacts/keys-config/ $EC2_USERNAME@$EC2_HOST:/var/www/linqra/keys/
          fi

          # Set correct permissions for pgadmin
          if [ -d /var/www/linqra/.kube/pgadmin/data ]; then
            sudo chown -R 5050:5050 /var/www/linqra/.kube/pgadmin/data
            sudo chmod -R 755 /var/www/linqra/.kube/pgadmin/data
          fi

          # Set correct permissions for MongoDB
          for d in data1 data2 data3; do
            if [ -d /var/www/linqra/.kube/mongodb/$d ]; then
              sudo chown -R 999:999 /var/www/linqra/.kube/mongodb/$d
            fi
          done
          if [ -f /var/www/linqra/.kube/mongodb/mongo-keyfile ]; then
            sudo chown 999:999 /var/www/linqra/.kube/mongodb/mongo-keyfile
            sudo chmod 400 /var/www/linqra/.kube/mongodb/mongo-keyfile
          fi

          # Ensure the parent directory exists
          sudo mkdir -p /var/www/linqra/.kube/pgadmin/data

          # Now set permissions
          sudo chown -R 5050:5050 /var/www/linqra/.kube/pgadmin
          sudo chmod -R 755 /var/www/linqra/.kube/pgadmin

          # Ensure the sessions directory exists and is owned by pgadmin
          sudo mkdir -p /var/www/linqra/.kube/pgadmin/data/sessions
          sudo chown 5050:5050 /var/www/linqra/.kube/pgadmin/data/sessions
          sudo chmod 700 /var/www/linqra/.kube/pgadmin/data/sessions

          # Check that HAProxy config and cert files exist on the EC2 host
          ssh $EC2_USERNAME@$EC2_HOST "
            ls -l /var/www/linqra/.kube/gateway/haproxy.cfg
            ls -l /var/www/linqra/keys/haproxy/gateway-combined-container.pem
          "

          # Ensure HAProxy cert file is readable by HAProxy in the container
          ssh $EC2_USERNAME@$EC2_HOST "
            sudo chmod 644 /var/www/linqra/keys/haproxy/gateway-combined-container.pem
          "

          echo "About to run SSH block"
          ssh $EC2_USERNAME@$EC2_HOST "
            # Set permissions
            sudo chown -R ubuntu:ubuntu /var/www/linqra
            sudo chmod -R 600 /var/www/linqra/keys/* || echo 'No keys to set permissions for'
            sudo find /var/www/linqra/keys -type d -exec chmod 755 {} \;
            sudo find /var/www/linqra/keys -type f ! -name 'mongo-keyfile' -exec chmod 600 {} \;

            # Set correct permissions for mongo-keyfile
            if [ -f /var/www/linqra/.kube/mongodb/mongo-keyfile ]; then
              sudo chown 999:999 /var/www/linqra/.kube/mongodb/mongo-keyfile
              sudo chmod 400 /var/www/linqra/.kube/mongodb/mongo-keyfile
            fi

            # Ensure HAProxy cert file is readable
            if [ -f /var/www/linqra/keys/haproxy/gateway-combined-container.pem ]; then
              sudo chmod 644 /var/www/linqra/keys/haproxy/gateway-combined-container.pem
            fi

            # Move to the deployment directory
            cd /var/www/linqra

            # Stop running containers
            echo 'Stopping running containers'
            sudo docker compose stop

            # Prune unused images/containers/volumes/networks
            echo 'Pruning unused images/containers/volumes/networks'
            sudo docker system prune -a -f

            # Check disk usage
            echo 'Checking disk usage'
            df -hT

            # Ensure the Docker network exists
            echo 'Ensuring the Docker network exists'
            sudo docker network create linqra-network || true

            # Build and start containers
            echo 'Building and starting containers'
            sudo docker compose -f docker-compose.yml -p linqra up -d --build

            # Check if containers are running
            echo 'Checking if containers are running'
            docker ps
          "

  dependency-review:
    if: github.event_name == 'pull_request'
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Dependency Review
        uses: actions/dependency-review-action@v4
        with:
          fail-on-severity: high

## 13. Initial MongoDB Replica Set Setup (First Deployment Only)

On your very first deployment, you may encounter MongoDB issues because the replica set is not yet initialized.
**You only need to do this once.**

### 1. Connect to the Primary MongoDB Container

```bash
docker exec -it mongodb1 mongosh -u root -p mongopw --authenticationDatabase admin

You should see a prompt like:

test>

2. Initialize the Replica Set

At the mongosh prompt, run:

rs.initiate({
  _id: "rs0",
  members: [
    { _id: 0, host: "mongodb1:27017" },
    { _id: 1, host: "mongodb2:27018" },
    { _id: 2, host: "mongodb3:27019" }
  ]
}, { force: true });

You should see output similar to:

{ ok: 1 }

3. Check Replica Set Status

rs.status()

You should see a status object with PRIMARY and SECONDARY members.

Note:

This setup is only required the first time you deploy your stack.
For more information, see the MongoDB Replica Set documentation.

14. First Initial Data

After initializing the MongoDB replica set, you need to create the initial user and data for your application.

1. Exit the MongoDB Shell

If you are still inside the mongosh shell, type:

exit

2. Run the Initial Setup API Call

Use curl to create the first user and initialize the database:

curl -k -X POST https://localhost:7777/api/setup/init \
  -H "Content-Type: application/json" \
  -d '{
    "username": "linqrasa",
    "email": "john@example.com",
    "password": Something"
  }'

3. Verify Data in MongoDB

Connect to MongoDB and list the databases to confirm the Linqra database was created:

docker exec -it mongodb1 mongosh -u root -p mongopw --authenticationDatabase admin
show dbs

You should see output similar to:

Linqra   1016.00 KiB
admin    172.00 KiB
config   284.00 KiB
local      3.28 MiB

You should now see the Linqra database listed.

15. Keycloak Configuration for EC2

Access Keycloak Admin Console

Access the Keycloak Admin Console at:

https://linqra.com/keycloak/admin/master/console/

1. Create New Realm

Log in to the Keycloak Admin Console
Click on the dropdown in the top-left corner (default shows “master”)
Click “Create Realm”
Configure the realm:
- Realm name: Linqra
- Display name: Linqra
- Frontend URL: https://linqra.com/keycloak
Ensure “Enabled” is switched ON
Click “Create”

2. Create New Client

General Settings

Navigate to “Clients” in the left sidebar
Click “Create client”
Configure the general settings:
- Client ID: linqra-gateway-client
- Name: Linqra Gateway Client
- Description: Linqra Gateway Client
- Always display in UI: ON
- Click “Next”

Access Settings

Configure the client’s access settings:

Root URL: https://linqra.com
Home URL: https://linqra.com
Valid redirect URIs: https://linqra.com/callback
Valid post logout redirect URIs: https://linqra.com
Web origins: https://linqra.com
Admin URL: https://linqra.com

Capability Config

Set up the authentication capabilities:

Client authentication: ON
Authorization: OFF
Authentication flow:
- Standard flow: Enabled
- Service accounts roles: Enabled
- All other flows: Disabled

3. Create Client Role

Navigate to the “Roles” tab in your client settings
Click “Create role”
Configure the role:
- Role name: gateway_admin
- Description: Gateway admin role for the client id: linqra-gateway-client
Click “Save”

4. Create Realm Role

Navigate to “Realm roles” in the left sidebar
Click “Create role”
Configure the role:
- Role name: gateway_admin_realm
- Description: Role to identify the belongings of the Linqra realm
Click “Save”

5. Assign Service Account Roles

Navigate to your client’s “Service accounts roles” tab
You’ll see the service account username: service-account-linqra-gateway-client
Assign both roles:
- Client role: gateway_admin
- Realm role: gateway_admin_realm

6. Create Client Scopes

a. Gateway Read Scope

Navigate to “Client scopes” in the left sidebar
Click “Create client scope”
Configure the scope:
- Name: gateway.read
- Description: To read the gateway end points
- Type: Default
- Display on consent screen: ON
- Include in token scope: ON
Click “Save”

b. Team Scope

Create another client scope:
- Name: team.scope
- Description: Restricts access to specific teams
- Type: Default
- Display on consent screen: ON
- Include in token scope: ON
Add a hardcoded claim mapper:
- Name: teams
- Category: Token mapper
- Mapper Type: Hardcoded claim
- Claim name: teams
- Claim value: ["67d0aeb17172416c411d419e"]
- Claim JSON type: JSON
- Add to ID token: ON
- Add to access token: ON
- Add to userinfo: ON

7. Assign Roles to Client Scope

Navigate to the gateway.read client scope
Go to the “Scope” tab
Assign both roles:
- Client role: gateway_admin
- Realm role: gateway_admin_realm

8. Add Client Scopes to Client

Navigate to the linqra-gateway-client settings
Go to the “Client scopes” tab
Add both scopes as “Default”:
- gateway.read
- team.scope

The configuration above is specific to the EC2 deployment environment. Make sure all URLs are using https://linqra.com instead of localhost URLs.

After configuring Keycloak, you may need to restart the Keycloak service to ensure all changes take effect:

sudo docker compose up -d --build keycloak-service

16. Useful Docker Commands and Maintenance

Check Running Containers

docker ps

Example output:

76fb57dfd9a7   haproxy:2.8                  "docker-entrypoint.s…"   ...   linqra-gateway-loadbalancer-1
6d35f7aee160   linqra-api-gateway-service   "java -Djavax.net.de…"   ...   linqra-api-gateway-service-3
b926fdffecee   linqra-api-gateway-service   "java -Djavax.net.de…"   ...   linqra-api-gateway-service-2
40c635bed63d   linqra-api-gateway-service   "java -Djavax.net.de…"   ...   linqra-api-gateway-service-1
f39fd18fefe4   linqra-keycloak-service      "/opt/keycloak/bin/k…"   ...   linqra-keycloak-service-1
a1294442aafa   linqra-redis-service         "redis-server /usr/l…"   ...   linqra-redis-service-1
0c4f29574158   linqra-mongodb2              "docker-entrypoint.s…"   ...   mongodb2
224725f44232   linqra-postgres-service      "docker-entrypoint.s…"   ...   linqra-postgres-service-1
b2288bf0c2b6   linqra-mongodb3              "docker-entrypoint.s…"   ...   mongodb3
fed2910c43d5   linqra-discovery-service     "java -Djavax.net.de…"   ...   linqra-discovery-service-1
2560a03d3bc1   linqra-mongodb1              "docker-entrypoint.s…"   ...   mongodb1
c83a6b2ec0cb   linqra-pgadmin-service       "/entrypoint.sh"         ...   linqra-pgadmin-service-1

Check Disk Usage

df -hT

Stop All Containers and Remove Docker Images

cd /var/www/linqra/
docker-compose down

Check Docker storage usage:

sudo du -h --max-depth=1 /var/lib/docker

Remove all Docker data (network, volume, image):

docker system prune -a -f

Check disk usage again:

df -hT

Check all containers (including stopped):

docker container ls -a

Restart or Build Specific Services

Restart only the Keycloak service:

sudo docker compose up -d --build keycloak-service

Restart only the Eureka server:

sudo docker compose up -d --build discovery-service

You should see: https://linqra.com/eureka/ Restart only the API Gateway service:

sudo docker compose up -d --build api-gateway-service
docker logs linqra-api-gateway-service-1

Build and start all services:

sudo docker compose up -d --build

Test and Debug

Refresh routes:

curl -k -H "Authorization: Bearer <ACCESS_TOKEN>" -X GET https://localhost:7777/api/routes/refresh/routes -v

Get OpenID certs from Keycloak (on EC2):

curl -v http://localhost:8281/keycloak/realms/Linqra/protocol/openid-connect/certs

Get OpenID certs from the gateway container:

docker exec -it linqra-api-gateway-service-1 curl -v http://keycloak-service:8080/keycloak/realms/Linqra/protocol/openid-connect/certs

Let me know if you want to add more commands or explanations!

Deployment Options

Dockerization

​1. Connect to Your EC2 Server

​2. Generate SSL Key and CSR

​3. Obtain SSL Certificates

​4. Upload Certificates to the Server

​5. Generate the Certificate Chain

​6. Set Up AWS EC2 Folders and Prepare for Deployment

​7. Manage Nginx

​8. Configure Nginx for SSL and React Frontend

​9. Enable the Nginx Site

​10. Set Permissions for Deployment

​11. Configure GitHub Actions Repository Secrets

​1. SSH Key for EC2

​2. EC2 Host and Deployment Info

​3. AWS Credentials

​4. Web Application Secrets

​12. Final GitHub Actions CI/CD Pipeline (ci.yml)

​2. Initialize the Replica Set

​3. Check Replica Set Status

​14. First Initial Data

​1. Exit the MongoDB Shell

​2. Run the Initial Setup API Call

​3. Verify Data in MongoDB

​15. Keycloak Configuration for EC2

​Access Keycloak Admin Console

​1. Create New Realm

​2. Create New Client

​General Settings

​Access Settings

​Capability Config

​3. Create Client Role

​4. Create Realm Role

​5. Assign Service Account Roles

​6. Create Client Scopes

​a. Gateway Read Scope

​b. Team Scope

​7. Assign Roles to Client Scope

​8. Add Client Scopes to Client

​16. Useful Docker Commands and Maintenance

​Check Running Containers

​Check Disk Usage

​Stop All Containers and Remove Docker Images

​Restart or Build Specific Services

​Test and Debug

1. Connect to Your EC2 Server

2. Generate SSL Key and CSR

3. Obtain SSL Certificates

4. Upload Certificates to the Server

5. Generate the Certificate Chain

6. Set Up AWS EC2 Folders and Prepare for Deployment

7. Manage Nginx

8. Configure Nginx for SSL and React Frontend

9. Enable the Nginx Site

10. Set Permissions for Deployment

11. Configure GitHub Actions Repository Secrets

1. SSH Key for EC2

2. EC2 Host and Deployment Info

3. AWS Credentials

4. Web Application Secrets

12. Final GitHub Actions CI/CD Pipeline (`ci.yml`)

2. Initialize the Replica Set

3. Check Replica Set Status

14. First Initial Data

1. Exit the MongoDB Shell

2. Run the Initial Setup API Call

3. Verify Data in MongoDB

15. Keycloak Configuration for EC2

Access Keycloak Admin Console

1. Create New Realm

2. Create New Client

General Settings

Access Settings

Capability Config

3. Create Client Role

4. Create Realm Role

5. Assign Service Account Roles

6. Create Client Scopes

a. Gateway Read Scope

b. Team Scope

7. Assign Roles to Client Scope

8. Add Client Scopes to Client

16. Useful Docker Commands and Maintenance

Check Running Containers

Check Disk Usage

Stop All Containers and Remove Docker Images

Restart or Build Specific Services

Test and Debug
