Local Docker Deployment

Overview

While we previously ran the discovery-service and api-gateway as standalone applications from the IDE or JAR files, we can also run them through Docker containers. This guide explains how to run all Linqra components using Docker.

Docker Compose Configuration

The docker-compose.yml file includes all necessary services:

Infrastructure Services:
- PostgreSQL (for Keycloak)
- pgAdmin (PostgreSQL management)
- Keycloak (authentication)
- MongoDB (replica set with 3 nodes)
- Redis (rate limiting and caching)
Core Services:
- Discovery Server (Eureka)
- API Gateway with HAProxy Load Balancer

Certificate Preparation

Before running the services, ensure you have the necessary certificates prepared for HAProxy:

# 1. Create haproxy directory
mkdir keys/haproxy

# 2. Export certificate in proper PEM format (this converts from binary to readable PEM)
keytool -exportcert \
        -alias gateway-app-container \
        -keystore keys/gateway-keystore-container.jks \
        -storepass 123456 \
        -rfc \
        -file keys/haproxy/gateway-cert-container.pem

# 3. Convert JKS to P12
keytool -importkeystore \
        -srckeystore keys/gateway-keystore-container.jks \
        -destkeystore keys/haproxy/gateway-keystore-container.p12 \
        -deststoretype PKCS12 \
        -srcalias gateway-app-container \
        -srcstorepass 123456 \
        -deststorepass 123456

# 4. Extract private key from P12
openssl pkcs12 \
        -in keys/haproxy/gateway-keystore-container.p12 \
        -nocerts \
        -out keys/haproxy/gateway-private-container.pem \
        -nodes \
        -passin pass:123456

# 5. Combine certificate and private key
cat keys/haproxy/gateway-cert-container.pem keys/haproxy/gateway-private-container.pem > keys/haproxy/gateway-combined-container.pem

The final directory structure should look like this:

keys/
├── gateway-keystore-container.jks          (original keystore)
└── haproxy/
    ├── gateway-cert-container.pem          (exported readable certificate)
    ├── gateway-keystore-container.p12      (converted keystore)
    ├── gateway-private-container.pem       (extracted private key)
    └── gateway-combined-container.pem      (combined cert + private key)

These certificates should have been generated during the initial setup. This section shows how they were created for reference.

Running Core Services

To start all core services with Docker Compose:

/usr/local/bin/docker compose -f /Users/mehmetsen/IdeaProjects/Linqra/docker-compose.yml -p linqra up -d --build

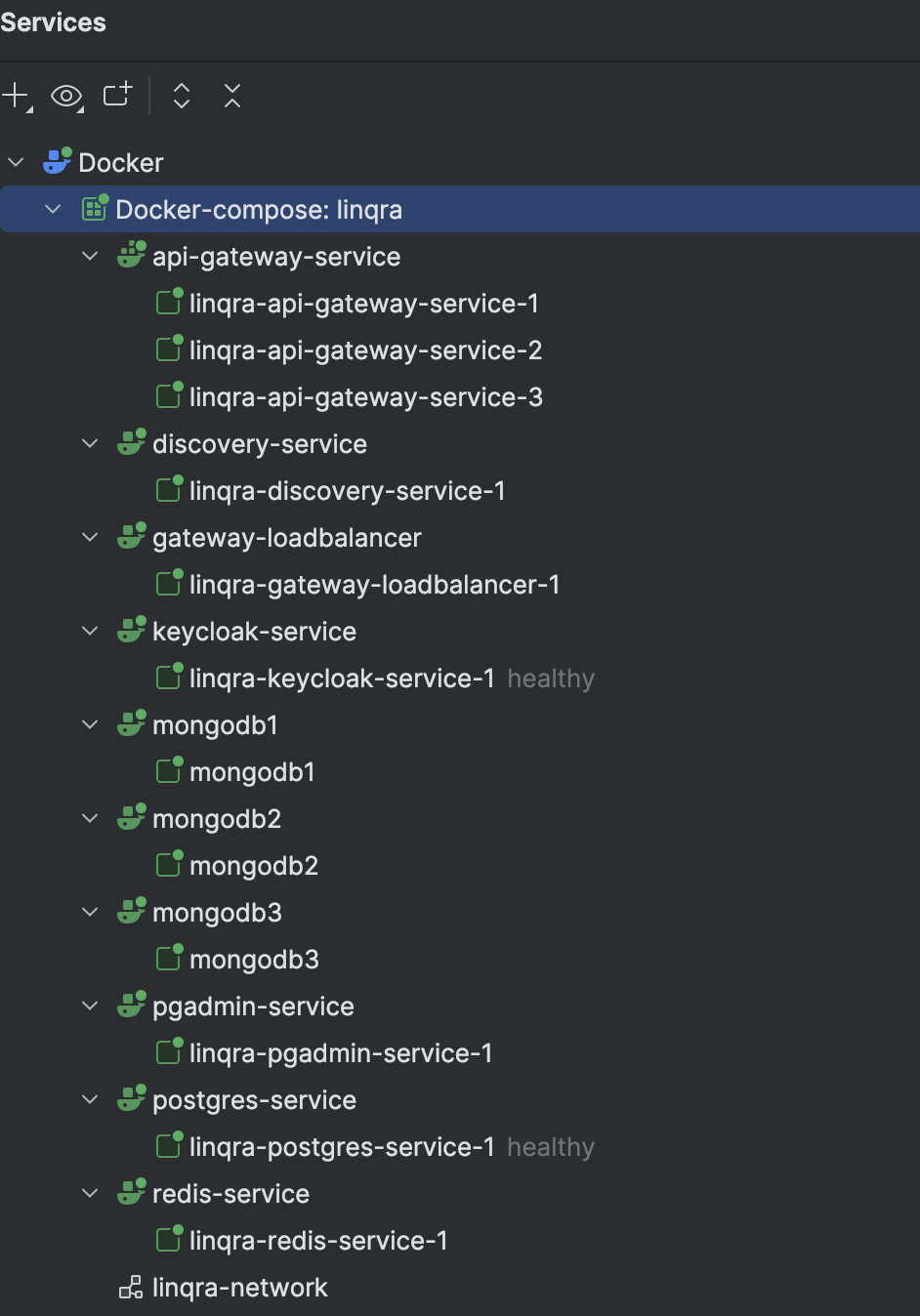

Here it is how it looks like:

This command:

Uses the local Docker Compose installation
Specifies the compose file location
Sets the project name to ‘linqra’
Runs in detached mode (-d)
Builds images if needed (—build)

Rebuilding Individual Services

If you update the api-gateway code or configuration, you can rebuild just that service:

/usr/local/bin/docker compose -f /Users/mehmetsen/IdeaProjects/Linqra/docker-compose.yml -p linqra up -d --build api-gateway-service

Service Configuration

Discovery Server (Eureka)

discovery-service:
  build:
    context: .
    dockerfile: .kube/eureka/Dockerfile
  environment:
    EUREKA_KEY_STORE: eureka-keystore.jks
    EUREKA_KEY_STORE_PASSWORD: 123456
    EUREKA_TRUST_STORE: eureka-truststore.jks
    EUREKA_TRUST_STORE_PASSWORD: 123456
    EUREKA_GATEWAY_URL: discovery-service
    EUREKA_ALIAS_NAME: eureka-app-container
  ports:
    - "8761:8761"
  volumes:
    - ./discovery-server:/app/discovery-server
    - ./keys:/app/keys
  networks:
    - linqra-network

Load Balancer and API Gateway

# Load Balancer
gateway-loadbalancer:
  image: haproxy:2.8
  ports:
    - "7777:7777"
  volumes:
    - ./.kube/gateway/haproxy.cfg:/usr/local/etc/haproxy/haproxy.cfg:ro
    - ./keys/haproxy/gateway-combined-container.pem:/etc/ssl/gateway-cert.pem:ro
  networks:
    - linqra-network
  depends_on:
    - api-gateway-service

# API Gateway Service
api-gateway-service:
  build:
    context: .
    dockerfile: ./.kube/gateway/Dockerfile
  environment:
    GATEWAY_TRUST_STORE: /app/gateway-truststore.jks
    GATEWAY_TRUST_STORE_PASSWORD: 123456
    GATEWAY_KEY_STORE: /app/gateway-keystore.jks
    GATEWAY_KEY_STORE_PASSWORD: 123456
    GATEWAY_API_HOST: api-gateway-service
    GATEWAY_ALIAS_NAME: gateway-app-container
    REDIS_GATEWAY_URL: redis-service
    MONGO_GATEWAY_URL: "mongodb://root:mongopw@mongodb1:27017,mongodb2:27018,mongodb3:27019/admin?replicaSet=rs0"
    KEYCLOAK_GATEWAY_URL: keycloak-service
    KEYCLOAK_GATEWAY_PORT: 8080
    EUREKA_GATEWAY_URL: discovery-service
    EUREKA_INSTANCE_URL: api-gateway-service
    SLACK_ENABLED: false
    SLACK_WEBHOOK_URL: https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX
    SMTP_ENABLED: false
    SMTP_PASSWORD: 123456
    SMTP_USERNAME: abcdef
  volumes:
    - ./api-gateway:/app/api-gateway
    - ./keys:/app/keys
  deploy:
    replicas: 3
    restart_policy:
      condition: on-failure
  expose:
    - "7777"
  networks:
    - linqra-network
  depends_on:
    - discovery-service
    - mongodb1
    - mongodb2
    - mongodb3
    - keycloak-service
    - redis-service

The API Gateway service is configured with 3 replicas for high availability, with HAProxy load balancing requests across these instances through port 7777.

Complete Docker Compose Configuration

Below is the complete docker-compose.yml file for local deployment:

networks:
  linqra-network:
    external: true

services:
  # PostgreSQL Database
  postgres-service:
    build:
      context: .
      dockerfile: ./.kube/postgres/Dockerfile
    command: postgres -c "max_connections=200"
    restart: always
    ports:
      - "5432:5432"
    healthcheck:
      test: [ "CMD-SHELL", "pg_isready -U ${POSTGRES_USER} -d ${POSTGRES_DB}" ]
      interval: 10s
      timeout: 3s
      retries: 3
    volumes:
      - ./.kube/postgres/data/:/var/lib/postgresql/data
    environment:
      POSTGRES_DB: keycloak
      POSTGRES_USER: keycloak
      POSTGRES_PASSWORD: password
    networks:
      - linqra-network

  # PostgreSQL Admin Interface
  pgadmin-service:
    build:
      context: .
      dockerfile: ./.kube/pgadmin/Dockerfile
    restart: always
    ports:
      - "9090:80"
    environment:
      PGADMIN_DEFAULT_EMAIL: user-name@domain-name.com
      PGADMIN_DEFAULT_PASSWORD: strong-password
    volumes:
      - ./.kube/pgadmin/data/:/var/lib/pgadmin
    networks:
      - linqra-network

  # Keycloak Authentication Service
  keycloak-service:
    build:
      context: .
      dockerfile: ./.kube/keycloak/Dockerfile
    environment:
      KC_DB: postgres
      KC_DB_URL: jdbc:postgresql://postgres-service:5432/keycloak
      KC_DB_USERNAME: keycloak
      KC_DB_PASSWORD: password
      KC_HTTP_ENABLED: true
      KC_HTTP_PORT: 8080
      KC_HOSTNAME: localhost
      KC_HOSTNAME_PORT: 8281
      KC_HOSTNAME_STRICT: false
      KC_LOG_LEVEL: info
      KC_METRICS_ENABLED: true
      KC_HEALTH_ENABLED: true
      KEYCLOAK_ADMIN: admin
      KEYCLOAK_ADMIN_PASSWORD: admin
    command:
      - start-dev
      - --import-realm
      - --export-realm
    volumes:
      - .kube/keycloak/data/import:/opt/keycloak/data/import
      - .kube/keycloak/data/export:/opt/keycloak/data/export
    depends_on:
      postgres-service:
        condition: service_healthy
    healthcheck:
      test: ["CMD-SHELL", "exec 3<>/dev/tcp/127.0.0.1/9000;echo -e 'GET /health/ready HTTP/1.1\r\nhost: http://localhost\r\nConnection: close\r\n\r\n' >&3;if [ $? -eq 0 ]; then echo 'Healthcheck Successful';exit 0;else echo 'Healthcheck Failed';exit 1;fi;"]
      interval: 10s
      timeout: 3s
      retries: 3
    ports:
      - "8281:8080"
    networks:
      - linqra-network

  # MongoDB Replica Set
  mongodb1:
    deploy:
      resources:
        limits:
          cpus: '1.0'
          memory: 1G
    build:
      context: .
      dockerfile: ./.kube/mongodb/Dockerfile
    container_name: mongodb1
    environment:
      MONGO_INITDB_ROOT_USERNAME: root
      MONGO_INITDB_ROOT_PASSWORD: mongopw
      MONGO_REPLICA_SET_NAME: rs0
    ports:
      - "27017:27017"
    volumes:
      - ./.kube/mongodb/data1/:/data/db
      - ./.kube/mongodb/mongo-keyfile:/data/mongo-keyfile
    networks:
      - linqra-network
    command: mongod --bind_ip_all --replSet rs0 --port 27017 -keyFile /data/mongo-keyfile

  mongodb2:
    deploy:
      resources:
        limits:
          cpus: '1.0'
          memory: 1G
    build:
      context: .
      dockerfile: ./.kube/mongodb/Dockerfile
    container_name: mongodb2
    environment:
      MONGO_INITDB_ROOT_USERNAME: root
      MONGO_INITDB_ROOT_PASSWORD: mongopw
      MONGO_REPLICA_SET_NAME: rs0
    ports:
      - "27018:27018"
    volumes:
      - ./.kube/mongodb/data2/:/data/db
      - ./.kube/mongodb/mongo-keyfile:/data/mongo-keyfile
    networks:
      - linqra-network
    command: mongod --bind_ip_all --replSet rs0 --port 27018 -keyFile /data/mongo-keyfile

  mongodb3:
    deploy:
      resources:
        limits:
          cpus: '1.0'
          memory: 1G
    build:
      context: .
      dockerfile: ./.kube/mongodb/Dockerfile
    container_name: mongodb3
    environment:
      MONGO_INITDB_ROOT_USERNAME: root
      MONGO_INITDB_ROOT_PASSWORD: mongopw
      MONGO_REPLICA_SET_NAME: rs0
    ports:
      - "27019:27019"
    volumes:
      - ./.kube/mongodb/data3/:/data/db
      - ./.kube/mongodb/mongo-keyfile:/data/mongo-keyfile
    networks:
      - linqra-network
    command: mongod --bind_ip_all --replSet rs0 --port 27019 -keyFile /data/mongo-keyfile

  # Redis Cache
  redis-service:
    build:
      context: .
      dockerfile: ./.kube/redis/Dockerfile
    environment:
      REDIS_GATEWAY_URL: redis-service
    ports:
      - "6379:6379"
    volumes:
      - ./.kube/redis/data/:/var/lib/redis/data
      - ./.kube/redis/redis.conf:/usr/local/etc/redis/redis.conf
    command: ["redis-server", "/usr/local/etc/redis/redis.conf"]
    networks:
      - linqra-network

  # Discovery Server (Eureka)
  discovery-service:
    build:
      context: .
      dockerfile: .kube/eureka/Dockerfile
    environment:
      EUREKA_KEY_STORE: eureka-keystore.jks
      EUREKA_KEY_STORE_PASSWORD: 123456
      EUREKA_TRUST_STORE: eureka-truststore.jks
      EUREKA_TRUST_STORE_PASSWORD: 123456
      EUREKA_GATEWAY_URL: discovery-service
      EUREKA_ALIAS_NAME: eureka-app-container
    ports:
      - "8761:8761"
    volumes:
      - ./discovery-server:/app/discovery-server
      - ./keys:/app/keys
    networks:
      - linqra-network

  # Load Balancer
  gateway-loadbalancer:
    image: haproxy:2.8
    ports:
      - "7777:7777"
    volumes:
      - ./.kube/gateway/haproxy.cfg:/usr/local/etc/haproxy/haproxy.cfg:ro
      - ./keys/haproxy/gateway-combined-container.pem:/etc/ssl/gateway-cert.pem:ro
    networks:
      - linqra-network
    depends_on:
      - api-gateway-service

  # API Gateway Service
  api-gateway-service:
    build:
      context: .
      dockerfile: ./.kube/gateway/Dockerfile
    environment:
      GATEWAY_TRUST_STORE: /app/gateway-truststore.jks
      GATEWAY_TRUST_STORE_PASSWORD: 123456
      GATEWAY_KEY_STORE: /app/gateway-keystore.jks
      GATEWAY_KEY_STORE_PASSWORD: 123456
      GATEWAY_API_HOST: api-gateway-service
      GATEWAY_ALIAS_NAME: gateway-app-container
      REDIS_GATEWAY_URL: redis-service
      MONGO_GATEWAY_URL: "mongodb://root:mongopw@mongodb1:27017,mongodb2:27018,mongodb3:27019/admin?replicaSet=rs0"
      KEYCLOAK_GATEWAY_URL: keycloak-service
      KEYCLOAK_GATEWAY_PORT: 8080
      EUREKA_GATEWAY_URL: discovery-service
      EUREKA_INSTANCE_URL: api-gateway-service
      SLACK_ENABLED: false
      SLACK_WEBHOOK_URL: https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX
      SMTP_ENABLED: false
      SMTP_PASSWORD: 123456
      SMTP_USERNAME: abcdef
    volumes:
      - ./api-gateway:/app/api-gateway
      - ./keys:/app/keys
    deploy:
      replicas: 3
      restart_policy:
        condition: on-failure
    expose:
      - "7777"
    networks:
      - linqra-network
    depends_on:
      - discovery-service
      - mongodb1
      - mongodb2
      - mongodb3
      - keycloak-service
      - redis-service

This configuration is specifically designed for local development and testing. The services are configured to run on localhost with appropriate port mappings and network settings.

Client Services

After setting up the core infrastructure and gateway services, you can deploy the example client services. Each service is configured to run with multiple instances for high availability.

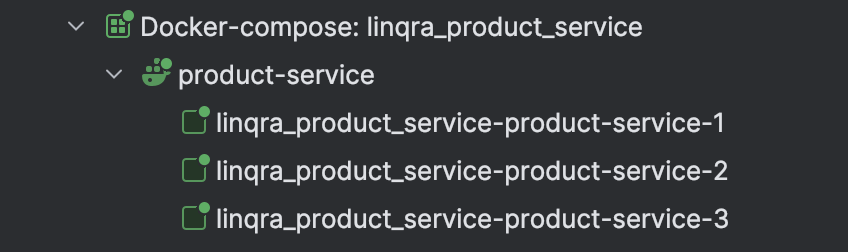

Product Service

The product service uses its own Docker configuration and certificates:

networks:
  linqra-network:
    external: true

services:
  product-service:
    build:
      context: .
      dockerfile: ./.kube/product/Dockerfile
    environment:
      CLIENT_TRUST_STORE: /app/client-truststore.jks
      CLIENT_TRUST_STORE_PASSWORD: 123456
      CLIENT_KEY_STORE: /app/client-keystore.jks
      CLIENT_KEY_STORE_PASSWORD: 123456
      CLIENT_ALIAS_NAME: product-service-container
      EUREKA_CLIENT_URL: discovery-service
      EUREKA_INSTANCE_URL: product-service
      KEYCLOAK_GATEWAY_URL: keycloak-service
      KEYCLOAK_GATEWAY_PORT: 8080
      GATEWAY_SERVICE_URL: api-gateway-service
    deploy:
      replicas: 3
    networks:
      - linqra-network
    volumes:
      - ./:/app/product-service
      - ./keys:/app/keys

To deploy the product service:

/usr/local/bin/docker compose -f /Users/mehmetsen/IdeaProjects/linqra_product_service/docker-compose.yml -p linqra_product_service up -d --build product-service

This will create three instances of the product service:

linqra_product_service-product-service-1
linqra_product_service-product-service-2
linqra_product_service-product-service-3

Inventory Service

Similar to the product service, the inventory service has its own Docker configuration:

networks:
  linqra-network:
    external: true

services:
  inventory-service:
    build:
      context: .
      dockerfile: ./.kube/inventory/Dockerfile
    environment:
      CLIENT_TRUST_STORE: /app/client-truststore.jks
      CLIENT_TRUST_STORE_PASSWORD: 123456
      CLIENT_KEY_STORE: /app/client-keystore.jks
      CLIENT_KEY_STORE_PASSWORD: 123456
      CLIENT_ALIAS_NAME: inventory-service-container
      EUREKA_CLIENT_URL: discovery-service
      EUREKA_INSTANCE_URL: inventory-service
      KEYCLOAK_GATEWAY_URL: keycloak-service
      KEYCLOAK_GATEWAY_PORT: 8080
      GATEWAY_SERVICE_URL: api-gateway-service
    deploy:
      replicas: 3
    networks:
      - linqra-network
    volumes:
      - ./:/app/inventory-service
      - ./keys:/app/keys

To deploy the inventory service:

/usr/local/bin/docker compose -f /Users/mehmetsen/IdeaProjects/linqra_inventory_service/docker-compose.yml -p linqra_inventory_service up -d --build

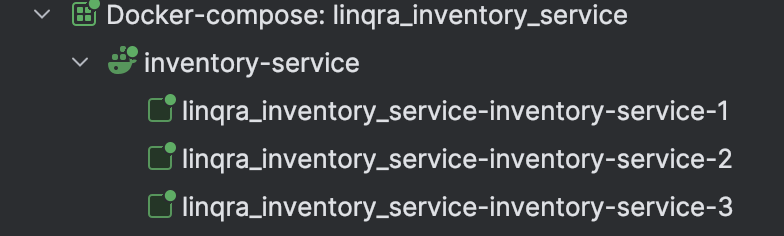

This will create three instances of the inventory service:

linqra_inventory_service-inventory-service-1
linqra_inventory_service-inventory-service-2
linqra_inventory_service-inventory-service-3

Both services use their own SSL certificates:

Product Service: product-keystore-container.jks and client-truststore.jks
Inventory Service: inventory-keystore-container.jks and client-truststore.jks

The certificates are mounted into the containers and used for secure communication with other services.

Service Architecture

Each client service:

Runs with 3 replicas for high availability
Uses SSL for secure communication
Registers with Eureka discovery service
Communicates through the API Gateway
Authenticates via Keycloak
Shares the same Docker network (linqra-network) with core services

Deployment Options

Dockerization

Local Docker Deployment

Overview

Docker Compose Configuration

Certificate Preparation

Running Core Services

Rebuilding Individual Services

Service Configuration

Discovery Server (Eureka)

Load Balancer and API Gateway

Complete Docker Compose Configuration

Client Services

Product Service

Inventory Service

Service Architecture

Deployment Options

Dockerization

​Overview

​Docker Compose Configuration

​Certificate Preparation

​Running Core Services

​Rebuilding Individual Services

​Service Configuration

​Discovery Server (Eureka)

​Load Balancer and API Gateway

​Complete Docker Compose Configuration

​Client Services

​Product Service

​Inventory Service

​Service Architecture

Overview

Docker Compose Configuration

Certificate Preparation

Running Core Services

Rebuilding Individual Services

Service Configuration

Discovery Server (Eureka)

Load Balancer and API Gateway

Complete Docker Compose Configuration

Client Services

Product Service

Inventory Service

Service Architecture
