Project Structure

The Linqra project consists of several key components:
Linqra/
├── .github/              # GitHub workflows and CI/CD configurations
├── .kube/                # Kubernetes and Docker configurations
├── api-gateway/          # Core API Gateway service (Java/Spring)
├── discovery-server/     # Service Discovery with Eureka (Java/Spring)
├── edge-service/         # Web Application (React)
├── keys/                 # Pre-generated certificates and keystores
│   ├── eureka-keystore.jks
│   ├── eureka-truststore.jks
│   ├── gateway-keystore.jks
│   └── gateway-truststore.jks
├── docker-compose.yml    # Docker Compose configuration for all services
└── ... other project files

​
Component Overview

  • .github: Contains GitHub-specific configurations and CI/CD workflow definitions
  • .kube: Houses Docker and Kubernetes configurations for containerized deployment
  • api-gateway: The core service that handles API routing, security, and gateway operations
  • discovery-server: Eureka server for service registration and discovery
  • edge-service: React-based web application for the user interface
  • keys: Pre-generated certificates and keystores for secure service communication
  • docker-compose.yml: Defines and configures all services for containerized deployment
The keys directory in the project root contains all necessary certificates for secure service communication. These certificates are pre-generated and ready to use.

​
Running from IntelliJ IDEA

This guide will help you set up and run Linqra directly from IntelliJ IDEA.

​
Prerequisites

  1. IntelliJ IDEA installed
  2. Java 21 or later
  3. Project cloned and opened in IntelliJ

​
Key Store Setup

Before running the applications, ensure your keystore and truststore files are in a designated folder. For example:
/Users/mehmetsen/IdeaProjects/Linqra/keys/
Your actual path will vary depending on your project location. Make sure to adjust the paths accordingly in the following configurations.

​
Discovery Server Configuration

  1. Open Run/Debug Configurations in IntelliJ
  2. Create a new Application configuration
  3. Configure the following settings:
  • Name: DiscoveryServer
  • Main class: org.lite.server.DiscoveryServerApplication
  • Working directory: Your project root directory
  • Environment variables:
EUREKA_KEY_STORE=/Users/mehmetsen/IdeaProjects/Linqra/keys/eureka-keystore.jks
EUREKA_KEY_STORE_PASSWORD=123456

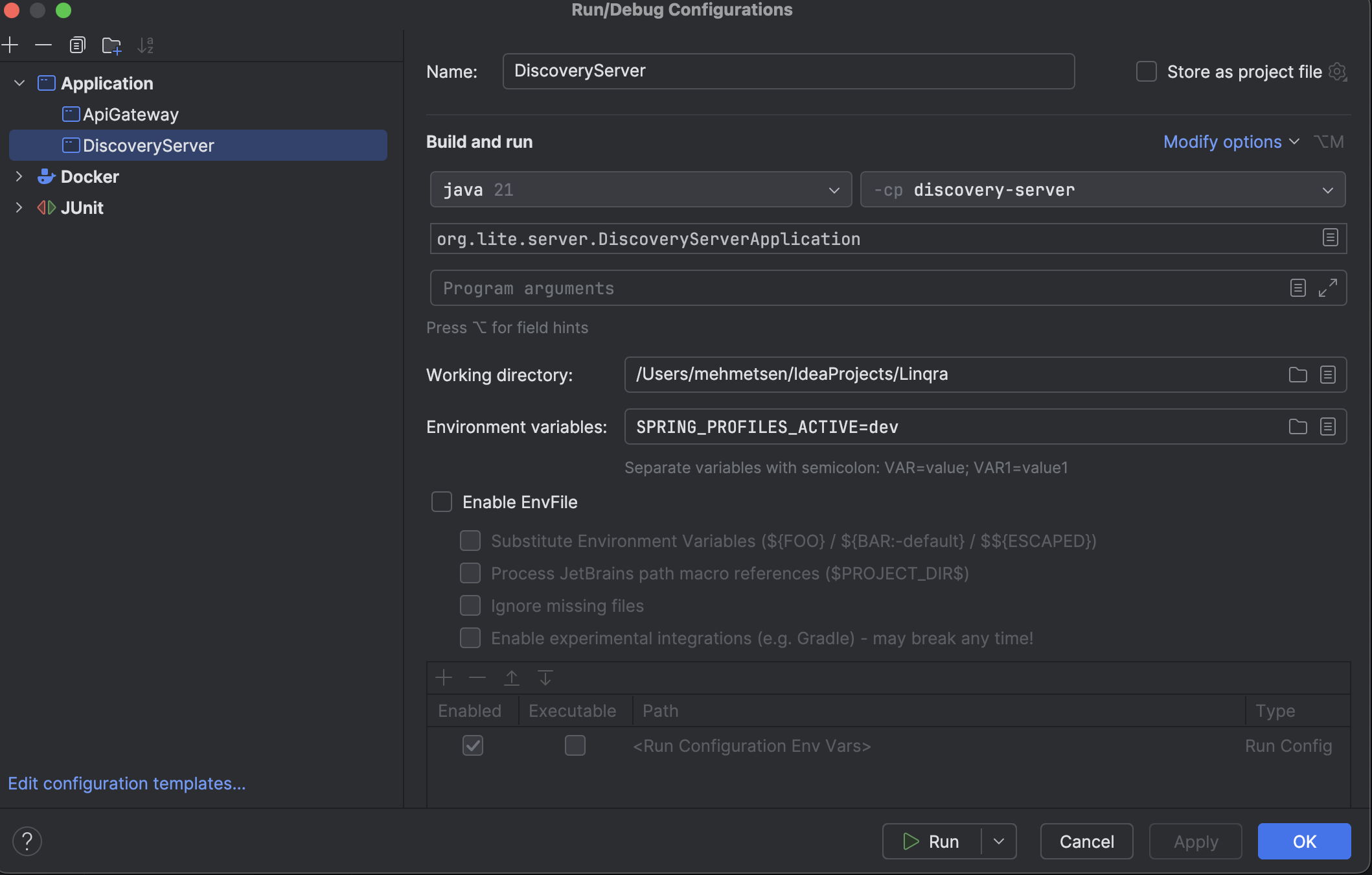

IntelliJ IDEA Discovery Server Configuration
Make sure the paths in your environment variables match your actual project structure.

​
API Gateway Configuration

  1. Open Run/Debug Configurations in IntelliJ
  2. Create a new Application configuration
  3. Configure the following settings:

​
Basic Settings

  • Name: ApiGateway
  • Main class: org.lite.gateway.ApiGatewayApplication
  • Working directory: Your project root directory

​
VM Options

-Djavax.net.ssl.trustStore=/Users/mehmetsen/IdeaProjects/Linqra/keys/gateway-truststore.jks
-Djavax.net.ssl.trustStorePassword=123456

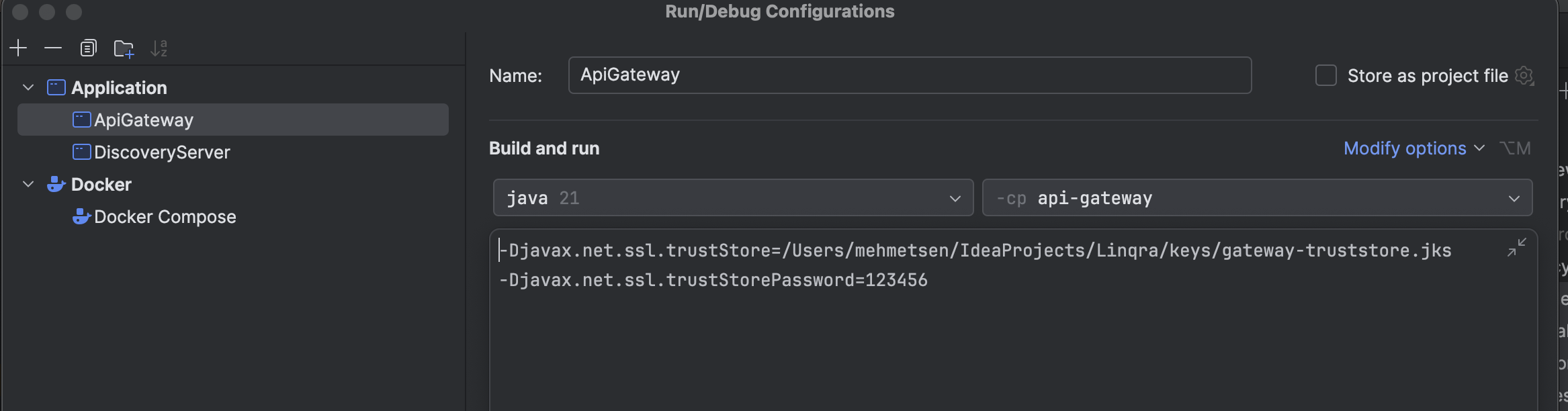

IntelliJ IDEA API Gateway VM Options Configuration

​
Environment Variables

GATEWAY_KEY_STORE=/Users/mehmetsen/IdeaProjects/Linqra/keys/gateway-keystore.jks
GATEWAY_KEY_STORE_PASSWORD=123456
GATEWAY_TRUST_STORE=/Users/mehmetsen/IdeaProjects/Linqra/keys/gateway-truststore.jks
GATEWAY_TRUST_STORE_PASSWORD=123456
KEYCLOAK_GATEWAY_PORT=8281
KEYCLOAK_GATEWAY_URL=localhost
SLACK_ENABLED=false
SLACK_WEBHOOK_URL=https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX
SMTP_ENABLED=false
SMTP_PASSWORD=
SMTP_USERNAME=

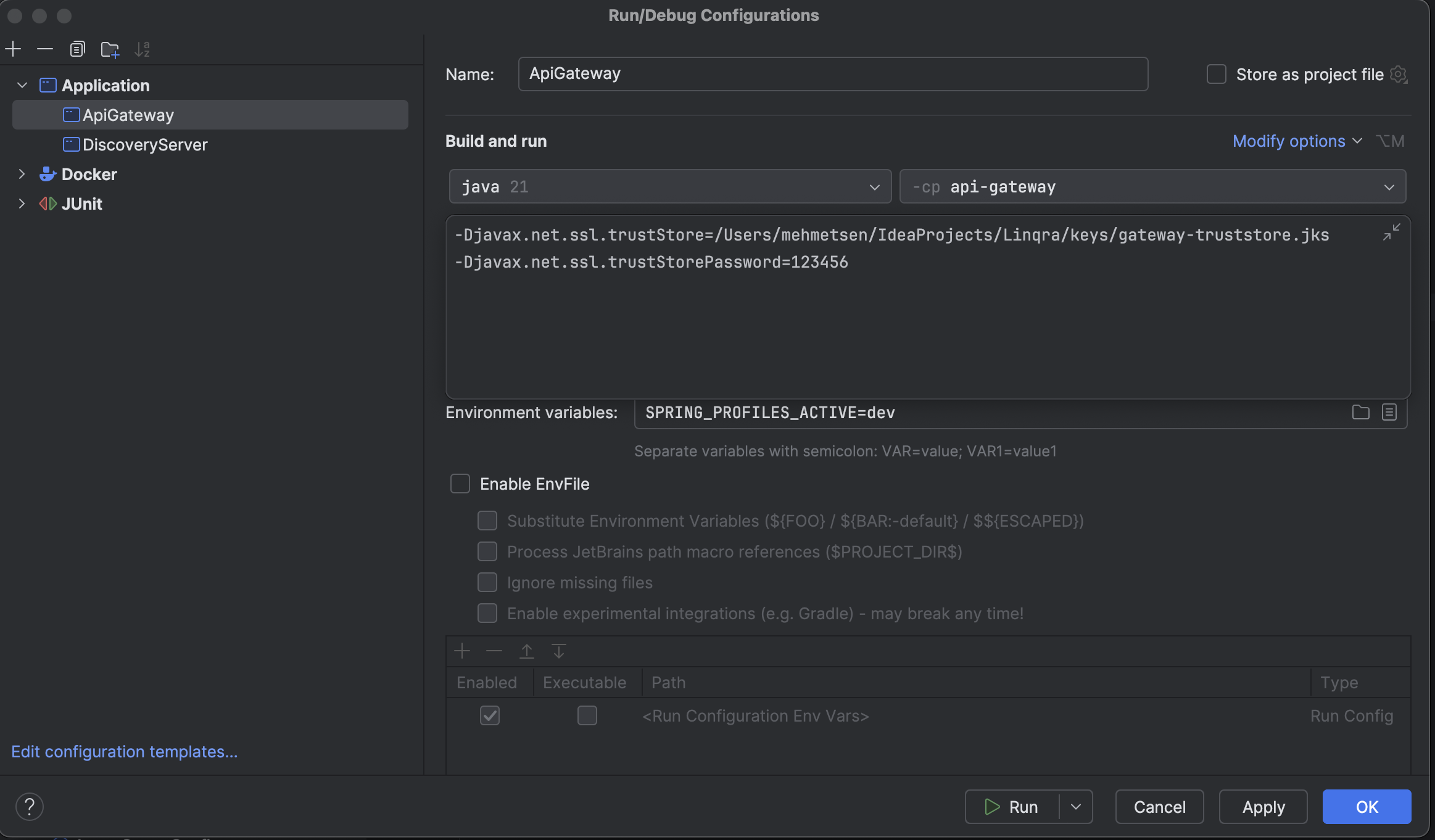

IntelliJ IDEA API Gateway Environment Variables Configuration
Make sure to:
  • Adjust all file paths to match your project structure
  • Update the Keycloak settings according to your setup
  • Leave Slack and SMTP settings as disabled (false) as these features are not yet implemented
The truststore and keystore paths in both VM options and environment variables must point to the certificate files in your project’s keys directory. Make sure to update the paths in the configurations to match your local project location.For example, if your project is at /Users/username/Projects/Linqra, then your paths should point to:
  • /Users/username/Projects/Linqra/keys/gateway-truststore.jks
  • /Users/username/Projects/Linqra/keys/gateway-keystore.jks
Incorrect paths will prevent secure communication between services.

​
Docker Configuration

​
Setting up Docker in IntelliJ

  1. Open Run/Debug Configurations in IntelliJ
  2. Create a new “Docker Compose” configuration
  3. Configure the following settings:
    • Name: Docker Compose
    • Compose files: ./docker-compose.yml
    • Remove orphans on down

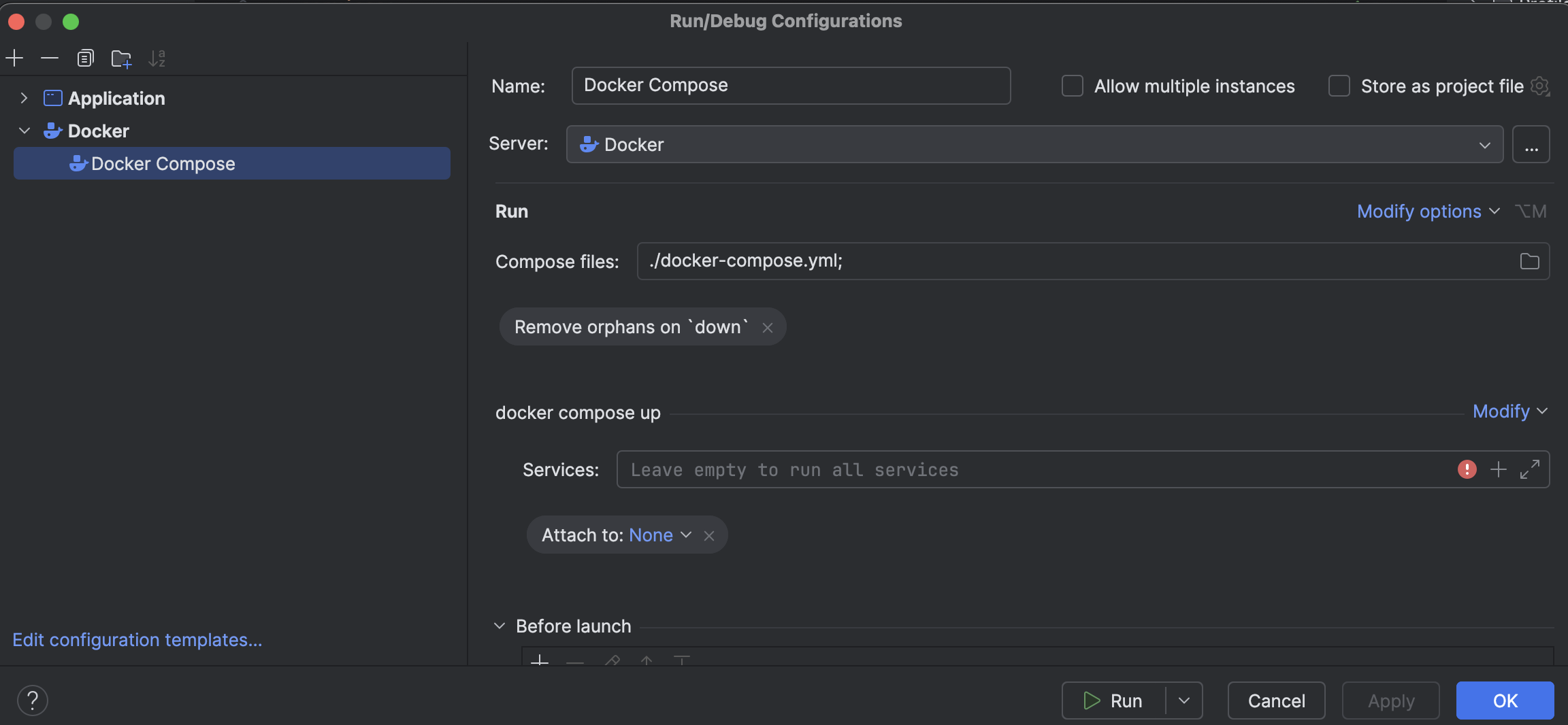

IntelliJ IDEA Docker Compose Configuration
If you are behind a corporate firewall or on a restricted network, you might face issues running Docker containers. Ensure you have proper network access and necessary permissions.

​
Running Docker Services

After starting the Docker Compose configuration, you should see the following services:
  • keycloak-service
  • mongodb1, mongodb2, mongodb3
  • pgadmin-service
  • postgres-service
  • redis-service

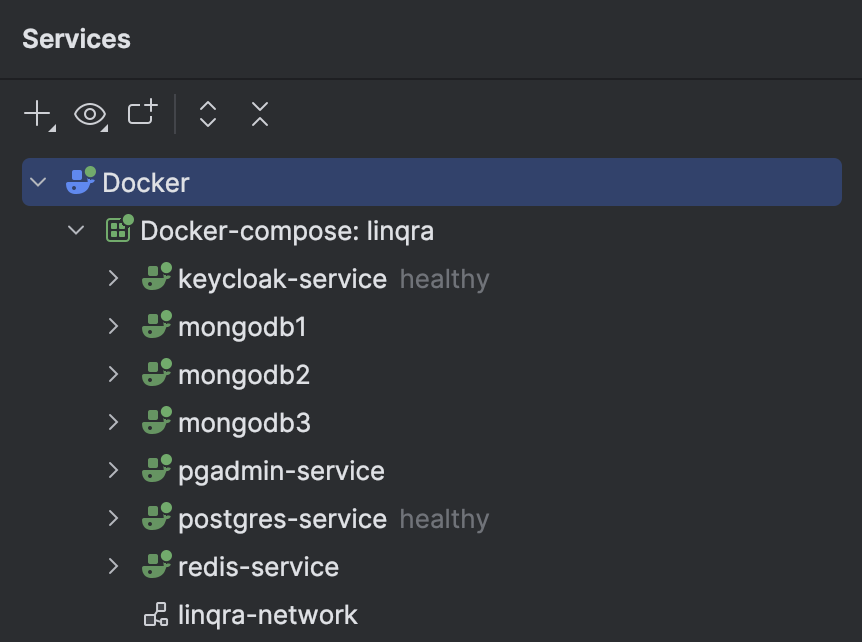

Docker Services Running

​
Verifying Services

​
1. Keycloak

  • URL: http://localhost:8281/
  • Default credentials:
    • Username: admin
    • Password: admin

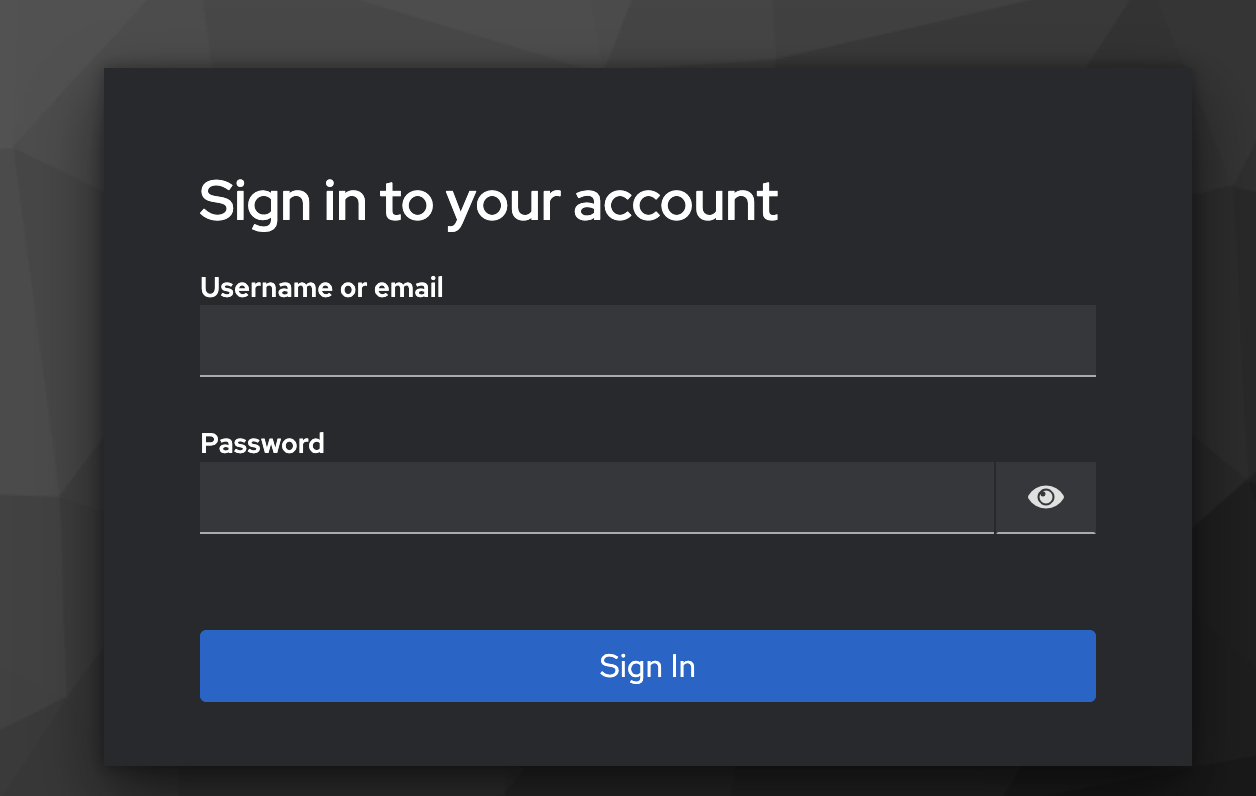

Keycloak Login Page
After verifying the Keycloak service is running, you’ll need to configure it for use with Linqra. Follow our detailed Keycloak Configuration Guide which includes:
  1. Creating the Linqra realm
  2. Setting up the gateway client
  3. Configuring roles and permissions
  4. Setting up client scopes
  5. Configuring service accounts
The default admin credentials should only be used in development environments. For production deployments, ensure you change these credentials.

​
2. Eureka Discovery Server

  • URL: https://localhost:8761/
  • Verify that services are registering correctly

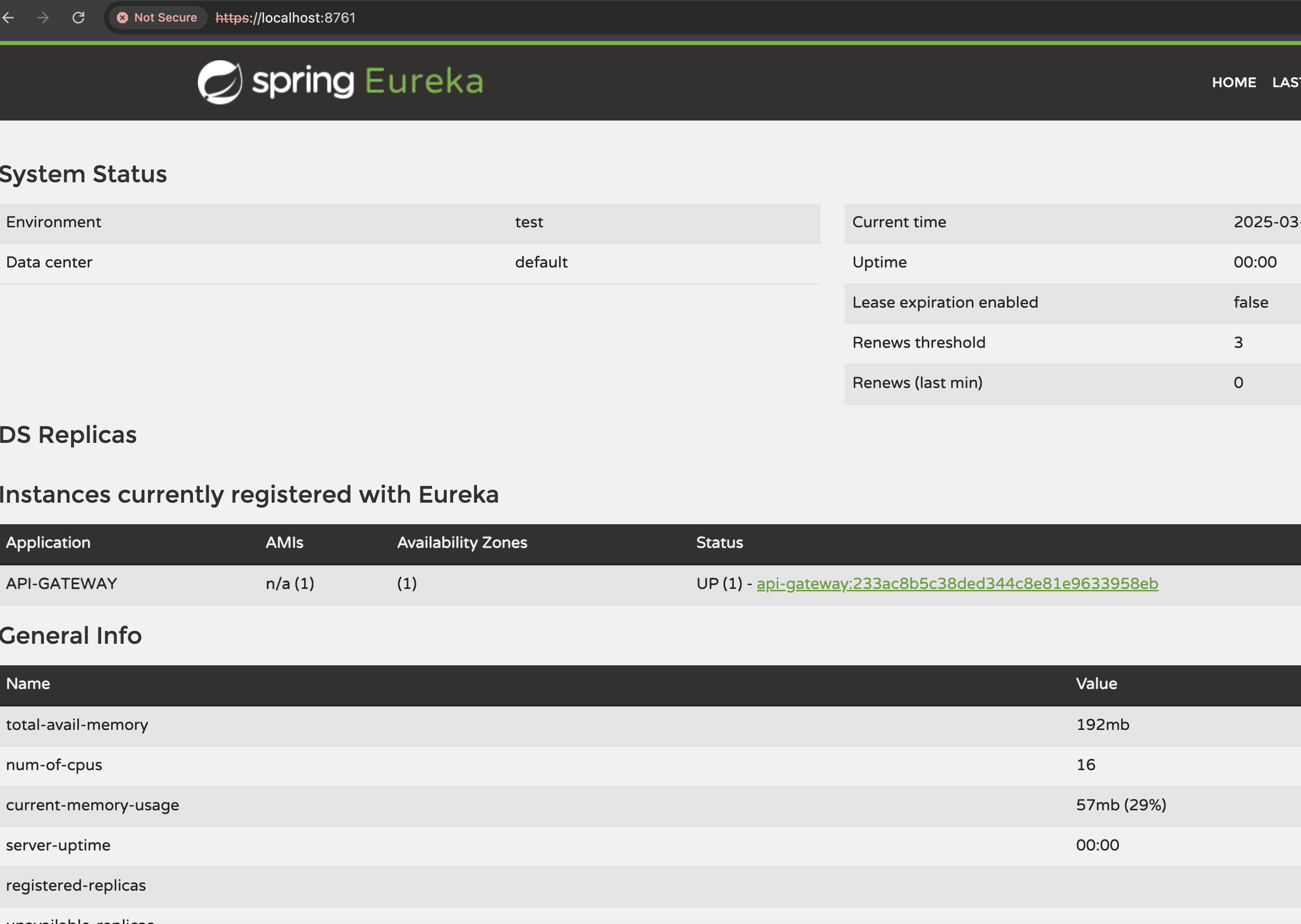

Eureka Discovery Server Dashboard

​
3. MongoDB Replica Set

Connect using MongoDB Shell:
mongosh "mongodb://root:mongopw@localhost:27017,localhost:27018,localhost:27019/?replicaSet=rs0&authSource=admin"
MongoDB Connection
For detailed MongoDB setup and configuration, refer to the MongoDB Configuration section.

​
4. Redis

Verify Redis connection through Redis CLI or RedisInsight:
Redis Connection

​
Service URLs and Ports

ServiceURLPort
Keycloakhttp://localhost:82818281
Eurekahttps://localhost:87618761
MongoDB Primarylocalhost:2701727017
MongoDB Secondary 1localhost:2701827018
MongoDB Secondary 2localhost:2701927019
Redislocalhost:63796379
PostgreSQLlocalhost:54325432
pgAdminhttp://localhost:90909090
All services are configured to run on a custom Docker network named linqra-network for secure inter-service communication.

​
Web Application Setup

The Edge Service provides the frontend React application for Linqra. After setting up the backend services, you can set up the React web application.

​
Running the Edge Service

Navigate to the edge-service directory and start the development server:
# Navigate to the edge-service directory
cd edge-service

# Start the development server
npm run dev
The web application will be available at http://localhost:3000/login

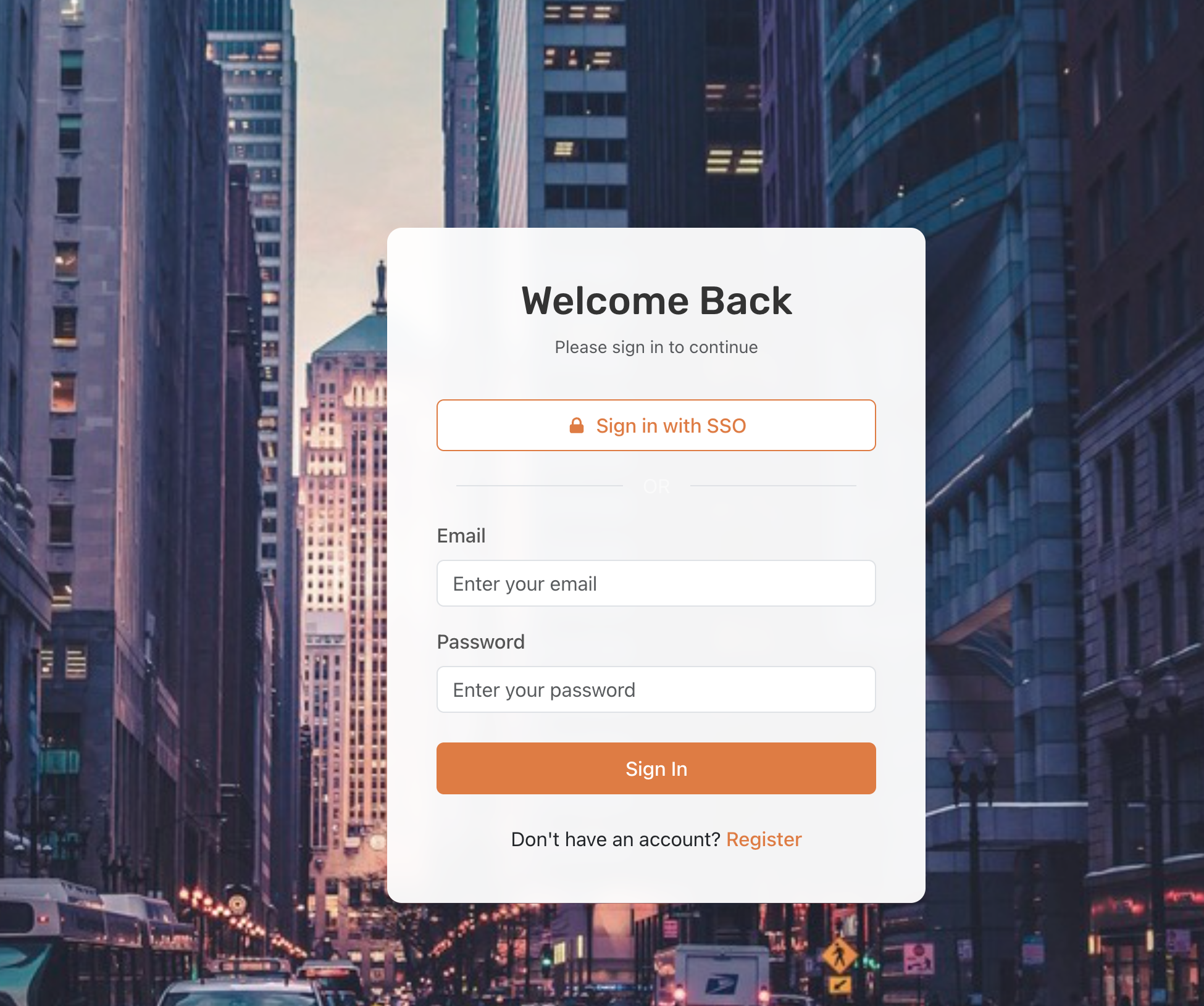

Linqra Login Screen
The web application is configured to connect to the local services you’ve already started. Make sure Keycloak, API Gateway, and other required services are running before accessing the web application.
You may need administrative privileges to run the development server on certain systems. If you encounter permission issues, try using sudo npm run dev.

​
Next Steps

This quickstart guide covered how to set up and run the core services required for Linqra development:
  1. Setting up IntelliJ configurations for Discovery Server and API Gateway
  2. Running the backend infrastructure with Docker (MongoDB, Redis, Keycloak, PostgreSQL)
  3. Starting the React web application (Edge Service)

​
Advanced Development

For more detailed information about development workflows, client-specific applications, and advanced configuration, refer to our Development Guide.
The Development Guide includes:
  • Code formatting standards
  • Testing procedures
  • CI/CD integration
  • Client-specific configuration
  • Troubleshooting common development issues
